What’s the Difference Between Single-Chamber and Dual-Chamber Air Suspension?
Air suspension is no longer an unfamiliar term for car enthusiasts. Once mainly found in luxury sedans, buses, or heavy-duty trucks transporting hazardous goods, air suspension has now made its way into mainstream consumer vehicles—thanks to the rapid development of new energy automakers and high-end vehicle technologies.
Recently, dual-chamber air suspension has also entered the scene, raising a common question: what’s the difference between single-chamber and dual-chamber air suspension, and which one performs better?
⚙️ How Does Air Suspension Work?
To understand the difference, let’s start with the basics.

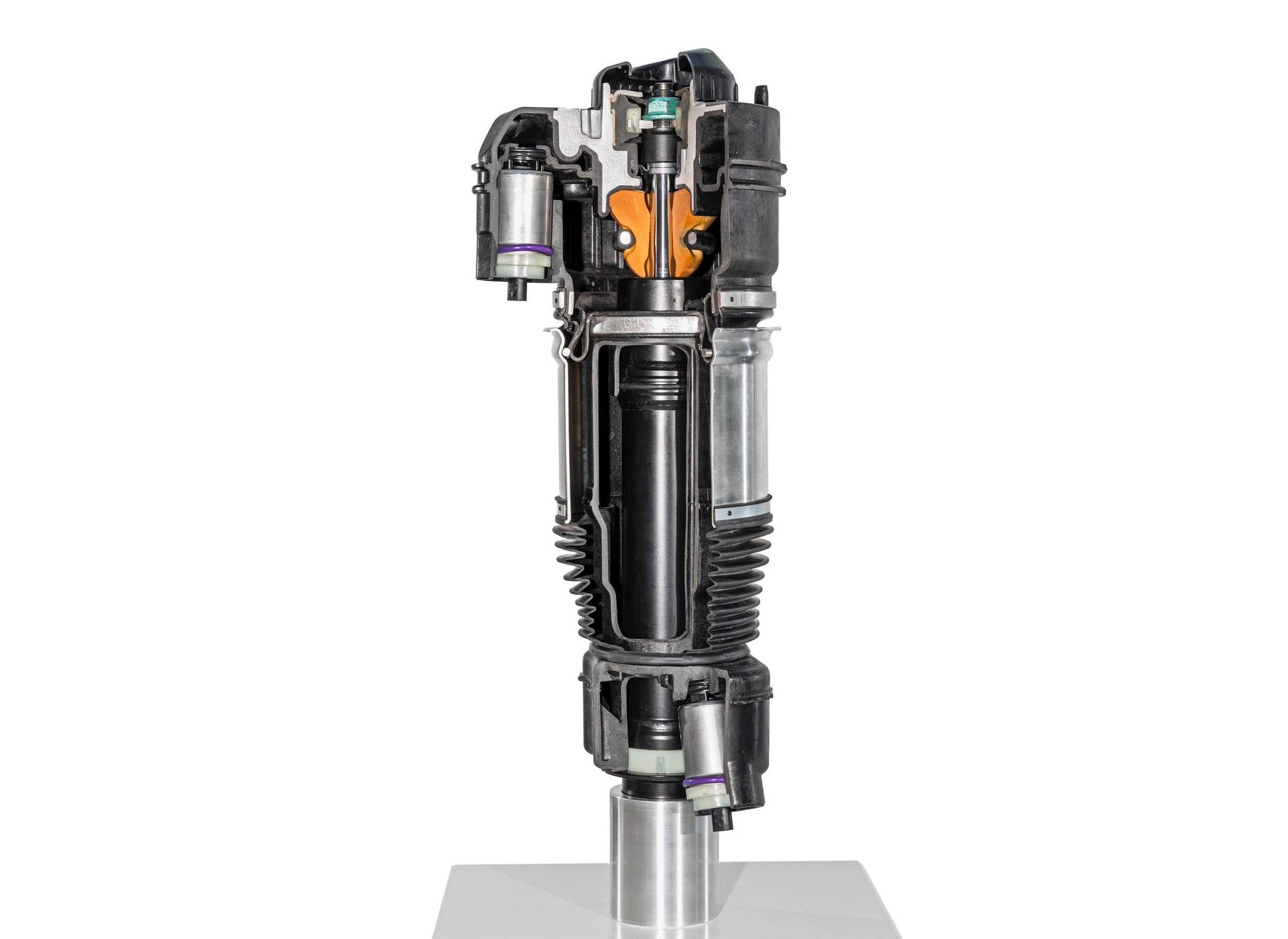

Unlike conventional mechanical suspensions that use coil springs, air suspension replaces the spring with a rubber airbag connected to an air compressor and air tank. The airbag acts as the elastic element, cushioning the vehicle by compressing and expanding with air pressure changes.
This design allows the suspension height to be adjusted by inflating or deflating the airbag. In other words, the vehicle can raise its ground clearance or lower its stance depending on road conditions or driving needs.
⚡ What Is a Single-Chamber Air Suspension?
In its early stages, air suspension featured only one air chamber—known as single-chamber air suspension.
When air is pumped into the chamber, the airbag elongates vertically, lifting the vehicle.
When air is released, the vehicle lowers.
However, since the chamber volume remains fixed at constant air pressure, stiffness (ride comfort) cannot be significantly adjusted.
👉 In short, single-chamber air suspension only offers height adjustment, not softness or stiffness control.
🔧 What Is a Dual-Chamber Air Suspension?
To improve performance, engineers introduced dual-chamber air suspension.
In this setup, an extra chamber is connected to the main air chamber via an electromagnetic valve.
When the valve opens: the total air volume increases, reducing pressure, and making the suspension softer.
When the valve closes: the suspension retains higher pressure, keeping it firmer.
This gives vehicles the ability to adjust both height and stiffness.
For even finer control, some premium models (like the latest Porsche Cayenne) have adopted triple-chamber air suspension, offering more flexibility in ride comfort and handling.
📊 Single vs. Dual-Chamber: Which Is Better?
Single-Chamber:
✅ Can raise and lower the vehicle.
❌ Cannot directly adjust stiffness.
Dual-Chamber:
✅ Offers both height adjustment and stiffness tuning.
✅ Provides better adaptability to road conditions and driving styles.

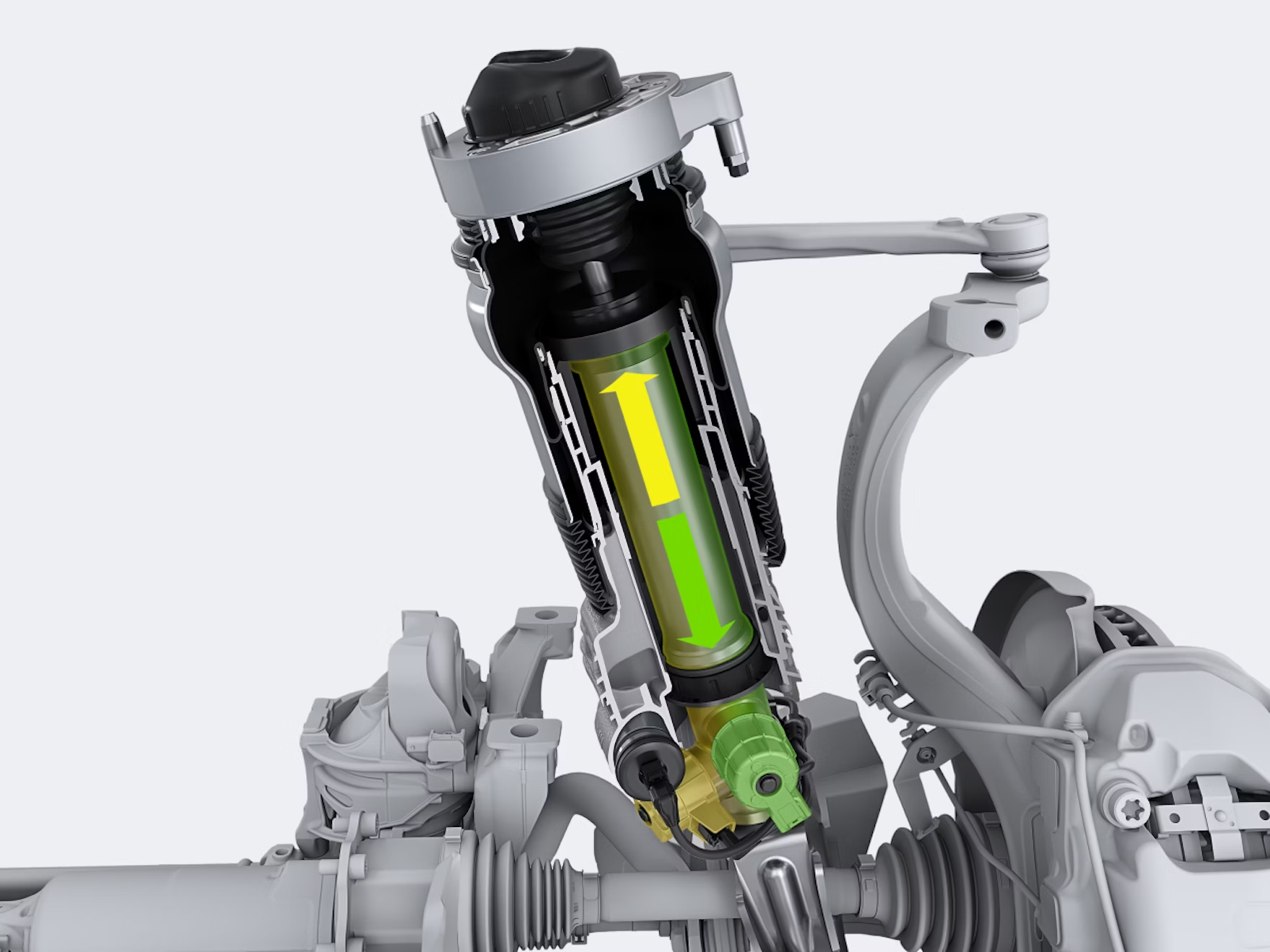

That said, performance also depends on whether the system is paired with CDC (Continuous Damping Control) variable dampers. Even a single-chamber setup, when combined with CDC, can simulate stiffness adjustment by controlling hydraulic resistance in the shock absorbers.
So while dual-chamber suspension has clear structural advantages, the real driving experience depends on how well the air suspension system and dampers are calibrated by the automaker.
📝 Final Thoughts
Dual-chamber air suspension indeed represents an upgrade in terms of flexibility and comfort. However, car buyers shouldn’t blindly trust hardware specs alone.
The best way to evaluate is to test-drive the vehicle yourself, experience the ride quality firsthand, and see how it matches your comfort and driving preferences. After all, the ultimate goal of air suspension is not just technology, but a driving experience tailored to you.
